2SD1555
NPN TRIPLE DIFFUSED
PLANAR SILICON TRANSISTOR
COLOR TV HORIZONTAL OUTPUT
APPLICATIONS(Damper Diode BUILT IN)
! High Collector-Base Voltage(VCBO=1500V)
! High Speed Switching
ABSOLUTE MAXIMUM RATINGS (TA=25oC)

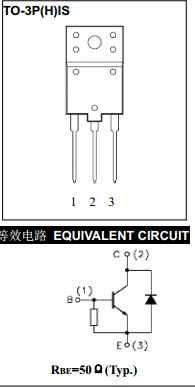

2-16E3A
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base voltage
Collector Current (DC)
Collector Dissipation (Tc=25oC)
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
PC
Tj
Tstg
Rating
1500
1500
6
5
50
150
-50~150
Unit
V
V
V
A
W
oC
oC
ELECTRICAL CHARACTERISTICS (TA=25oC)
Characterristic
Collector- Emitter Cutoff Current(VBE=0)
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Collector- Emitter Saturation Voltage
Symbol
ICES
ICBO
IEBO
hFE
VCE(sat)
Test Condition
Min Typ
VCE= 1400 V ,
RBE=0
VCB= 800 V , IE=0
VEB= 4V , IC=0
VCE= 5V ,
IC=1A
IC=5A ,
IB=1A
8
Max
1.0
10
1.0
5.0
Unit
mA
µA
mA
V
Wing Shing Computer Components Co., (H.K..)Ltd.
Homepage: http://www.wingshing.com
Tel:(852)2341 9276 Fax:(852)2797 8153
E-mail: wsccltd@hkstar.com
1 page | ||
